WebHooks
Architect supports WebHooks for different events. You are able to send fully customizable payload structures to any specified URL.

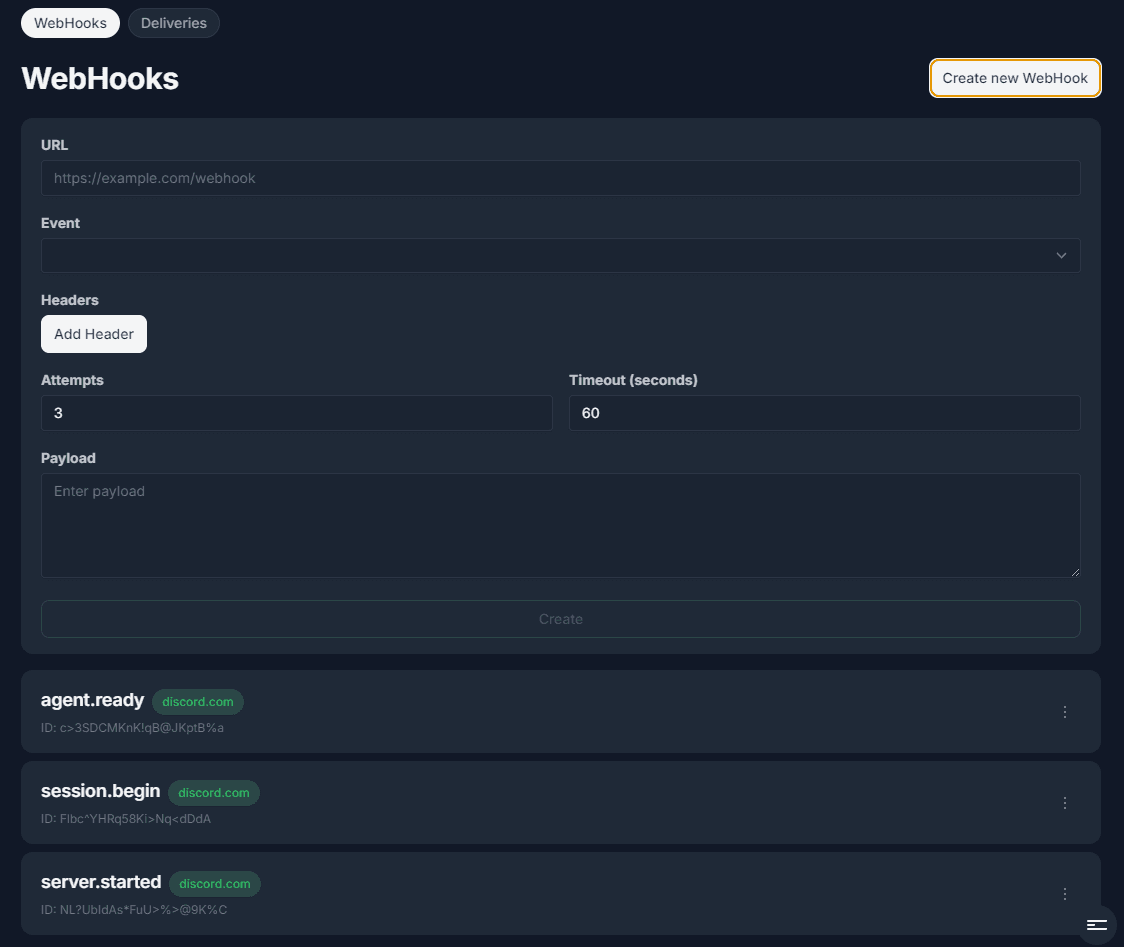

Once a WebHook has been created, the specified URL will be contacted once such an event occurs.
WebHook deliveries
All WebHook events are sent from the Agent directly. You are able to customize the amount of retries, the HTTP timeout and supply custom headers for all deliveries of any WebHook.
Deliveries are individually tracked and contain a unique delivery id. A record about all deliveries is kept for 7 days.
In case any specific delivery fails, it will be retried based on your configured retry counter.
All delivers carry certain technical headers that allow you to identify an Architect WebHook event:
| Key | Description |
|---|---|
| X-WebHook | Static string: "Architect Agent" |
| X-WebHook-Id | Unique id of the WebHook registration |
| X-WebHook-Event | Event type of the delivery |
| X-Event-Idempotence | Idempotence token that is static for each delivery to catch double deliveries in case of retries |

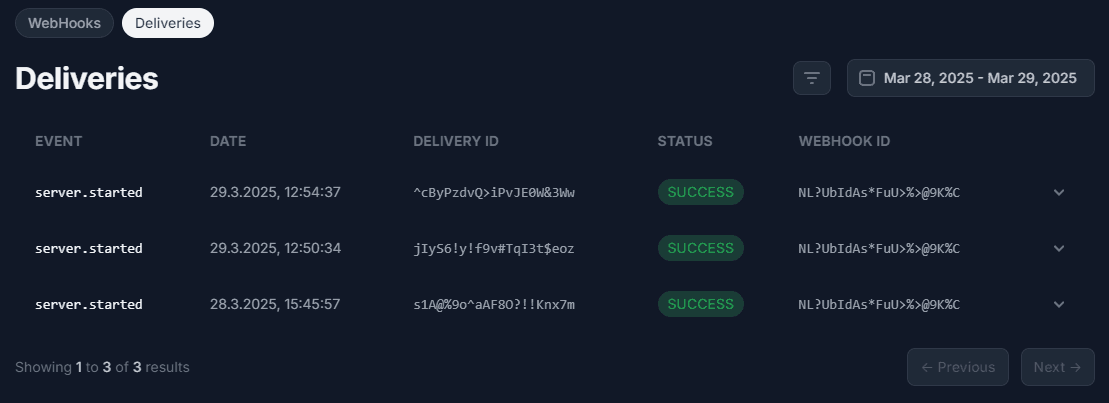

You are able to access the WebHooks your agent has executed from WebHooks, Deliveries:
Templating
WebHook payloads can be templated. Different events have different templating values available that carry information about that specific event.
Parameters can be embedded in the format `{{parameter}}` where parameter represents the individual values name.
Events
agent.ready
General event, not specific to any reference entity
Sent when an Agent has started.
| Value | Description |
|---|---|
| date | UTC Unix timestamp of event occurrence |
session.begin
General event, not specific to any reference entity
Sent when a user connects to an Agent.
| Value | Description |
|---|---|
| date | UTC Unix timestamp of event occurrence |
| user | Username |
| ip_address | IP address used to connect |
| session | Unique session id |
session.ended
General event, not specific to any reference entity
Sent when a user disconnects from an Agent.
| Value | Description |
|---|---|
| date | UTC Unix timestamp of event occurrence |
| user | Username |
| ip_address | IP address used to connect |
| session | Unique session id |
server.started
Filtered event, only applies to specific entities or all
Sent when a server starts.
| Value | Description |
|---|---|
| date | UTC Unix timestamp of event occurrence |
| server | Server identifier |
server.stopped
Filtered event, only applies to specific entities or all
Sent when a server stops.
| Value | Description |
|---|---|
| date | UTC Unix timestamp of event occurrence |
| server | Server identifier |
| reason | Reason code for server stop: - requested - killed |
server.updated_title
Filtered event, only applies to specific entities or all
Sent when a server is updated (after update completes).
| Value | Description |
|---|---|
| date | UTC Unix timestamp of event occurrence |
| server | Server identifier |
| title | Title id |
server.updated_mod
Filtered event, only applies to specific entities or all
Sent when a mod update is applied to the server (after update completes).
| Value | Description |
|---|---|
| date | UTC Unix timestamp of event occurrence |
| server | Server identifier |
| mod | Mod name (depending on modding ecosystem) |
| mod_id | Mod id (depending on modding ecosystem) |
title.updated
General event, not specific to any reference entity
Sent when a title update has been discovered.
| Value | Description |
|---|---|
| date | UTC Unix timestamp of event occurrence |
| title | Title id |
mod.updated
General event, not specific to any reference entity
Sent when a mod update has been discovered.
| Value | Description |
|---|---|
| date | UTC Unix timestamp of event occurrence |
| mod | Mod name (depending on modding ecosystem) |
| mod_id | Mod id (depending on modding ecosystem) |
